24Pins Quick Lock Heavy Standard Inserts
The HE series standard ferrule features 24 copper alloy pins with simple operation and single specification, making it widely used in hot runner applications. This product performs reliably in harsh environments and is an excellent choice for current transmission.
Product Specifications
| Specifications |
DIN EN 60 664 |
| Specifications |
DIN EN 61 984 |
| Termination method |
Quick lock |
| Number of contacts |
24 |
| Rated Current |
16A |
| Rated Impulse Voltage |
6kV |
| Pollution Degree |
3 |
| Rated Voltage Acc.to UL Csa |
600V |
| Insulation Resistance |
≥1010Ω |
| Material |
Polycarbonate |
| Limiting Temperature |
-40℃...+125℃ |
Product Drawings
HE-024-MZ
HE-024-FZ
Product Details
The HE-024-MZ/HE-024-FZ is part of the HE series, featuring 24 copper pins and male plug-in connectors. These connectors ensure normal equipment operation in temperatures ranging from -40°C to +125°C. Testing shows that the 24-pin plug-in connector connects in just 6 minutes, compared to 15 minutes for traditional screw-connected connectors, significantly reducing installation time and improving work efficiency.
Quick Lock Terminal Technology

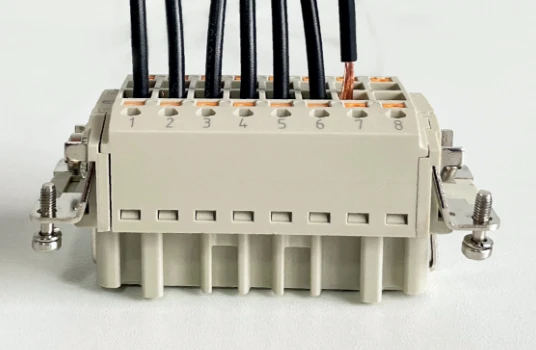

ZJHK plug-in connectors revolutionize traditional wiring processes. While maintaining all the functionality of traditional screw crimping and cage crimping connectors, they significantly improve efficiency. The plug-in wiring method enables easy installation and allows for adding or removing wiring harnesses without disassembling the connector housing.
Production & Test Equipment
ZJHK utilizes advanced equipment for heavy-duty connector production and testing. Our comprehensive testing covers the entire product lifecycle from material performance to electrical safety, mechanical strength, and environmental adaptability, establishing a scientific quality assurance system.
Application Scenarios
As a cornerstone of modern technology, semiconductor industry development directly impacts national strength and technological competitiveness. Heavy-duty connectors are widely used to connect robots with control cabinets and power systems in automotive manufacturing production lines, including spot welding robots, spraying robots, and assembly robots, forming highly automated production systems.
Frequently Asked Questions
How do you ensure product reliability?
We implement mechanical plug and unplug tests, salt spray tests, vibration tests, and maintain ISO 9001 certification. We can provide test reports and RoHS/REACH compliance documentation.
Do you have your own factory, or do you source them from suppliers?
Yes, we operate our own factory covering nearly 10,000 square meters in Wenzhou City, Zhejiang Province, China.
What is the life cycle time of the product?
More than 500 connection cycles.
